Understanding the Spacer Layer in Membrane Switches

25 Nov, 2023

By hqt


In the construction of membrane switches, the spacer layer plays a vital yet often overlooked role. Let’s delve into what a spacer layer is and its significance in membrane switch design.

What is a Spacer Layer?

Definition and Purpose

The spacer layer in a membrane switch is essentially a piece of adhesive material that separates the conductive layers. This separation is crucial for the proper functioning of the switch.

Role in Membrane Switches

The primary role of the spacer layer is to keep the top and bottom layers of the switch apart, preventing unintended activation. When pressed, the spacer compresses, allowing the two conductive layers to meet and complete the circuit.

Common Materials for Spacer Layers

Adhesive Paper Options

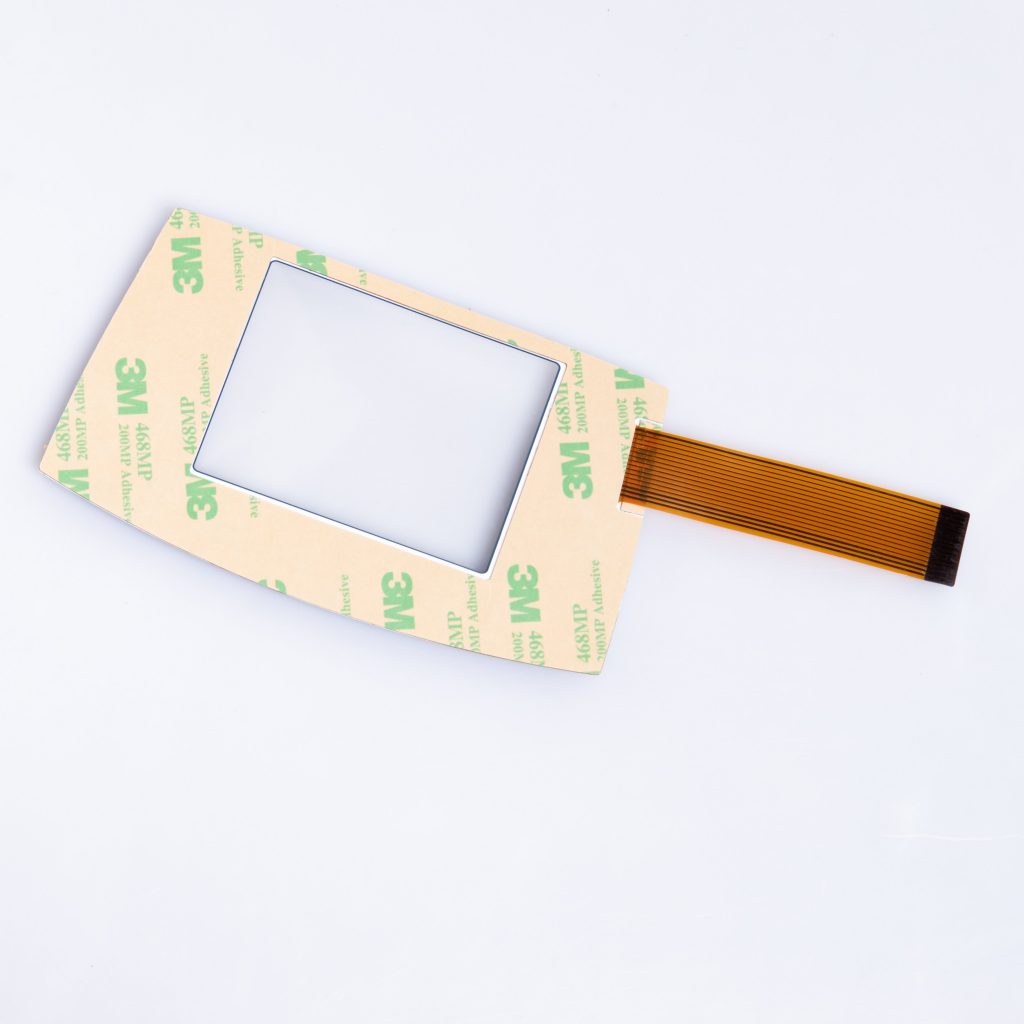

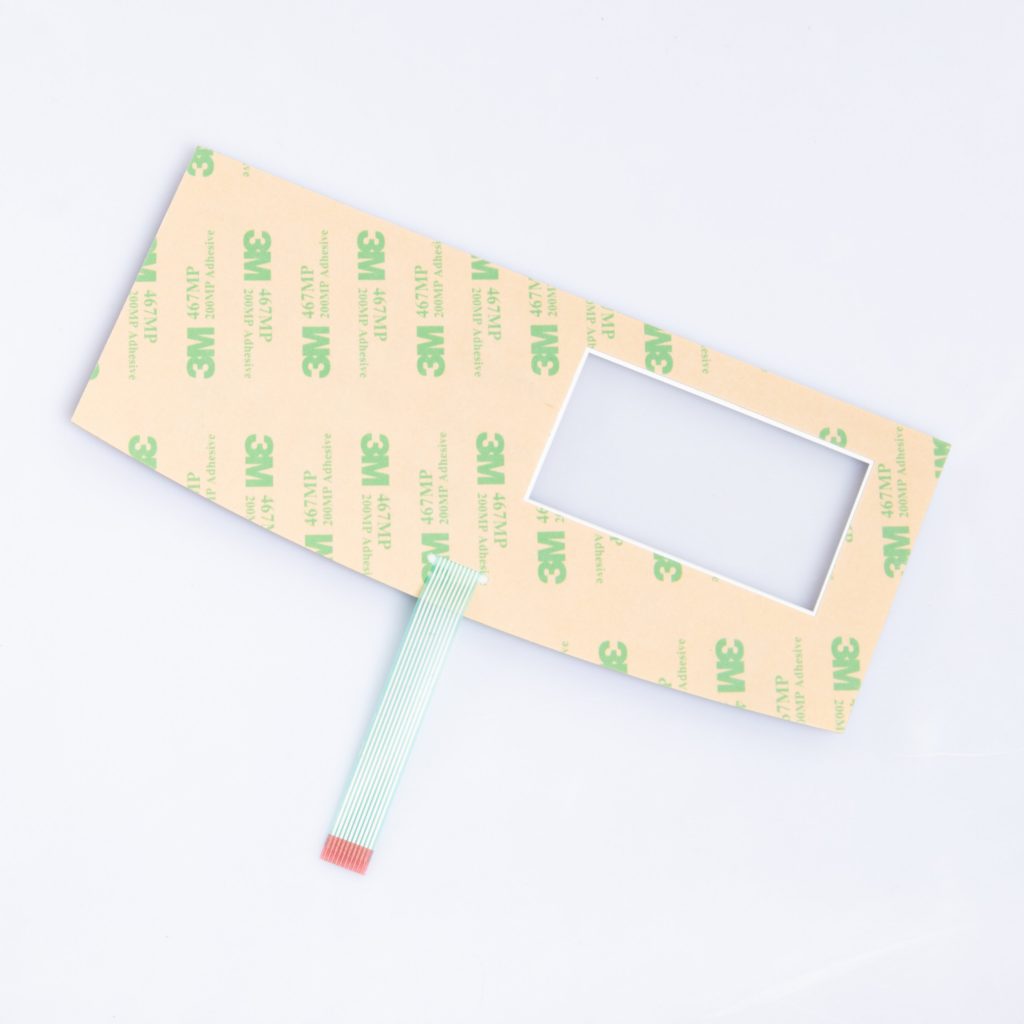

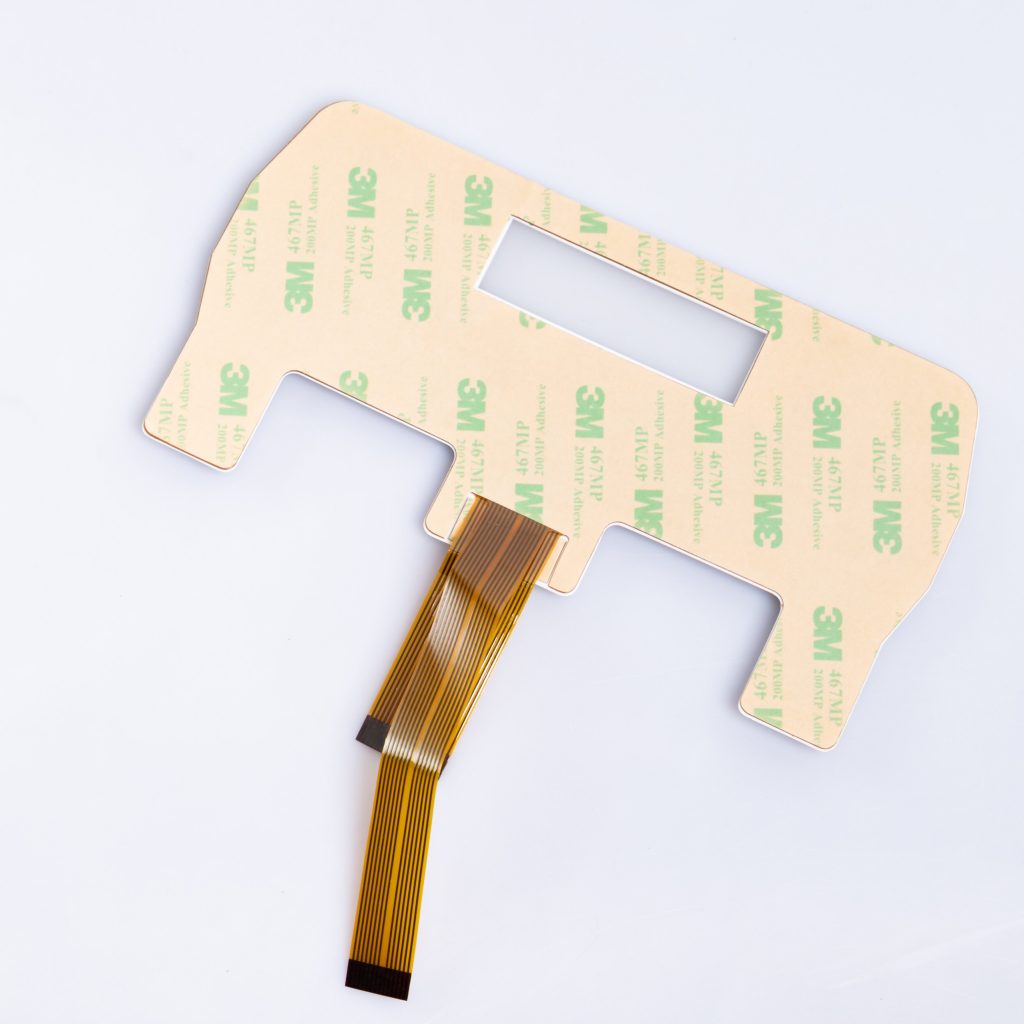

  • 3M Adhesive Papers: A popular choice due to their reliability and consistent performance. 3M offers a range of adhesive materials suited for different types of membrane switches.
  • DT Adhesive Papers (Chinese-made): These are commonly used as a cost-effective alternative. They offer good performance, particularly in applications where cost management is a priority.

Importance of Material Choice

Durability and Performance

The selection of the spacer material directly affects the durability and the tactile response of the switch. Higher-quality materials tend to provide better longevity and a more consistent user experience.

Application-Specific Considerations

Different applications may require specific properties from the spacer material, like resistance to certain chemicals, temperature tolerance, or flexibility.


The spacer layer is a critical component in the design and functionality of membrane switches. Its choice of material, be it a high-grade option like 3M or a more economical choice like DT adhesive papers, plays a pivotal role in the performance and durability of the final product. Understanding the nuances of these materials helps in creating membrane switches that are reliable and suitable for their intended applications.
