The highest waterproof level can be IP68-WATERPROOF Membrane Switch

Get A Free Quote

icon_gou

Waterproof

icon_gou

Long Life

icon_gou

Easy to Clean

Waterproof-2
Waterproof-3
Waterproof-4
Waterproof-5
Waterproof-6
Waterproof-7
Waterproof-8

How to make your Waterproof Membrane Switch more competitive in the market?

Can be Combined with Backlight Solution

Choose FPC or PCB as the Circuit

Can Use Silicone Rubber Keyboard to Seal the Membrane Switch

You Can Choose the Structure of the Waterproof Frame

"Choose the right solution to reduce the cost of Waterproof Membrane Switch"

- Quality products from niceone keypad

Read More more

Advantages of WATERPROOF Membrane Switch

  1. The specific materials used can prevent deterioration caused by ultraviolet rays and weather exposure.
  2. Waterproof to prevent moisture damage.
  3. The waterproof surface is easy to clean.
  4. There will be no operational problems even when exposed to an outdoor environment.
  5. Prevent water, dust and particulate damage, corrosion resistance.
  6. Can be combined with Backlight Solution.

Read More more

Waterproof-4

Read More more

How to improve the waterproof performance of your Membrane Switch?

  1. The farther away the LEDs and METAL DOME are from the edge, the better. The purpose of this is to avoid short circuit problems in the circuit after moisture enters the product.
  2. The choice of adhesive tape-the stronger the adhesion, the better.
  3. Sometimes Silicone Rubber is also a good choice as a panel. Use Silicone Rubber Keypad to seal Membrane Switch.
  4. Adopt a waterproof frame structure-the purpose is to form a confined space for the line and separate the moisture from the line.
  5. Choose FPC or PCB as the circuit, the design of the circuit can be far away from the edge of Membrane Switch. Moisture cannot cause damage to the circuit.

Read More more

Waterproof-5

Advantages od Cooperation

Reasons To Persuade You

icon_open

icon_close

  • No organization of maintenance operations

  • No documentation of maintenance

  • Optimal service – 24 hours problem solving

  • Manufacturer-independent maintenanceeight levels

  • Products with high quality and competitive prices

  • Professional design

  • Good after-sales service

Contact

Niceone Keypad

Professional Manufacturer

+86-0769-8269-8371 info@niceone-keypad.com

What Is Waterproof Membrane Switch?

Waterproof Membrane Switch is a Membrane Switch whose waterproof performance can reach IP65 or even IP68. Generally used in navigation and outdoor equipment industries. Membrane Switch uses waterproof design to achieve waterproof applications, and it will continue to be used in exposed humid environments, and the life of Waterproof Membrane Switch will be longer. Thereby reducing a lot of hidden costs.

Waterproof Membrane Switch has changed our lives.

We have to admire the advancement of technology and materials, which enables our products to be expanded and improved. Waterproof Membrane Switch is one of them. Its excellent performance allows customers’ products to use Membrane Switch normally even in humid and dusty environments. Even the use of Membrane Switch in water has become a reality. The waterproof design makes the product avoid a lot of product function loss caused by moisture and dust, which leads to accidents. It is precisely because of this that our products have become more superior and practical, making our lives better and better. To say that Waterproof Membrane Switch has changed our lives, it is actually the advancement of science and technology and the advancement of materials science that have changed our lives. Make our world better and better.

Waterproof-6

Unknown advantages of WATERPROOF Membrane Switch

- Quality products from niceone keypad

It can make the electrostatic shielding of ESD, EMI and RFI more excellent. Static electricity can flow out from the edges.

The actual service life is long. Due to the structure of the waterproof frame, the circuit of the product will not be easily corroded by moisture and cause the circuit to be short-circuited and oxidized.

Reasonable design even allows your Membrane Switch to be used in the deep sea.

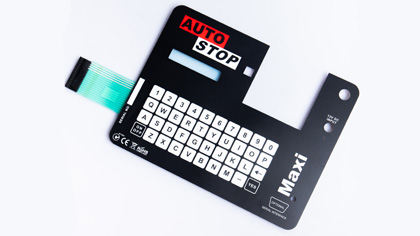

How to make your Membrane Switch more waterproof?

Table of Content:

1. What is Waterproof Membrane Switch?

Most Waterproof Membrane Switches are Membrane Switches with an IP rating of IP66 or above, which can be called Waterproof Membrane Switches. Excellent Waterproof Membrane Switches have obvious resistance to dust, moisture, dirt or other fine particles. Even in these types of environments, the Waterproof Membrane Switch works very well. A well-designed Waterproof Membrane Switch works even fully submerged in water without compromising its performance. Most of the regular Membrane Switch can pass IP65 – that is, there is still some simple waterproof performance, but it cannot be immersed in water without affecting its function.

Note for Waterproof Membrane Switch:

  • Fully waterproof even when fully submerged
  • Use an edge gasket between the cover edge and the mounting box
  • Durable enough to ensure longevity
  • Use specific materials that prevent damage from extreme weather or temperature
  • Isolate the circuit from the external environment
  • Easy to install or retrofit into existing equipment
the Waterproof Membrane Switch the Waterproof Membrane Switch

2. What is the difference between the structure of the Waterproof Membrane Switch and the regular Membrane Switch?

The main difference between Waterproof Membrane Switch and Membrane Switch must be whether the circuit adopts a waterproof structure. To put it simply, as shown in the figure below, the frame structure is used to surround the inside of the line to form an island. At the same time, it is also a better design for the requirements:

the Waterproof Membrane Switch-Waterproof frame size

The structure of the waterproof frame has the following three categories:

Waterproof frame structure Waterproof frame structure Waterproof frame structure

The regular Membrane Switch is the following structure:

The regular Membrane Switch structure

3. What is the principle of waterproofing?

In the form of a frame, an island-shaped circuit is formed inside the circuit, and water droplets cannot enter the circuit through the lead wire. If the A form of the waterproof frame is selected, the water droplets cannot enter the water from the surface glue and cause the circuit function to malfunction.

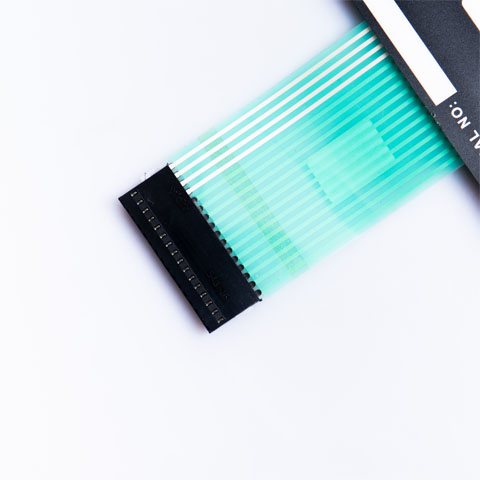

4. How to improve the waterproofness of the Membrane Switch?

  • The buttons and LEDs need to be at least 5mm away from the edge, if possible, the farther away the better.
  • Choose 3M with better viscosity instead of DT Adhesive. Adhesive with better viscosity can effectively prevent Adhesive separation caused by water pressure.
  • Use Silicone Rubber Keypad to surround the structure below the surface glue. Conducive to the formation of island circuits to prevent moisture from entering the product and causing a short circuit.
  • Flex Copper Circuit can be selected. Even if the water enters in a humid environment, it will not easily cause problems in the circuit.

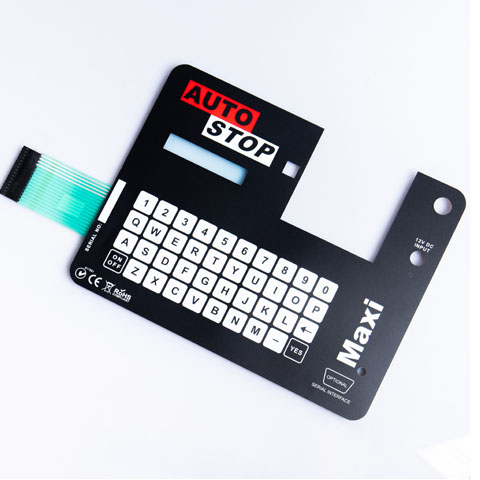

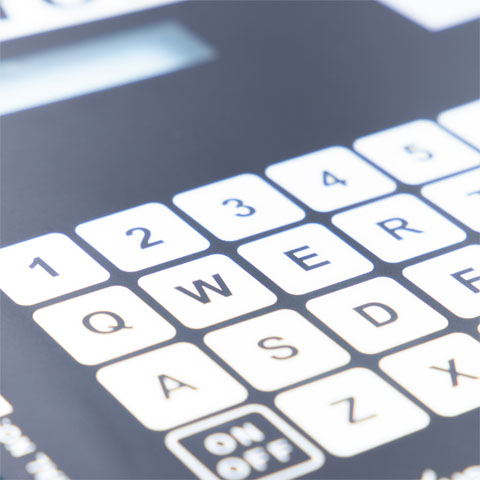

the waterproofness of the Membrane Switch the waterproofness of the Membrane Switch the waterproofness of the Membrane Switch

Additional:

Since Waterproof Membrane Switch is used in the marine industry, UV-resistant materials such as XE or HP92W series materials are often selected.

As long as a reasonable design can make your Membrane Switch reach IP67 or even IP68.

5. How to test the waterproof level of Waterproof Membrane Switch?

Niceone-Keypad with IP66 and below can be tested in the factory, but IP67 and above requires a third party to test and issue corresponding documents.

When developing user interface products that require protection against continuous exposure to water, such as control panels on boats or underwater applications, you may consider the Niceone-Keypad, which has 12 years of experience and a professional engineering team. Niceone-Keypad’s engineering team works closely with customers to determine precise specifications to ensure we have the right solution for your application needs! Contact Niceone-Keypad for the most suitable Waterproof Membrane Switch for you.
