Why Do Graphic Lines Suddenly Become Thick During Silkscreen Printing for Membrane Switch?

08 Jun, 2023

By hqt


Silkscreen printing is a popular technique used in the production of membrane switches, a key component of various electronic devices. However, at times, graphic lines in the printed design may unexpectedly become thick, causing concerns for manufacturers. In this article, we will explore the reasons behind this phenomenon and provide insights into resolving this issue effectively.

Understanding Silkscreen Printing and Membrane Switches

Before delving into the reasons behind thick graphic lines during silkscreen printing for membrane switches, let’s briefly understand the process and purpose of these components.

Silkscreen Printing: Silkscreen printing, also known as screen printing, is a method that involves transferring ink through a fine mesh screen onto a substrate. It is commonly employed in the production of various products, including textiles, circuit boards, and membrane switches. The process allows for precise and detailed designs to be printed onto different materials.

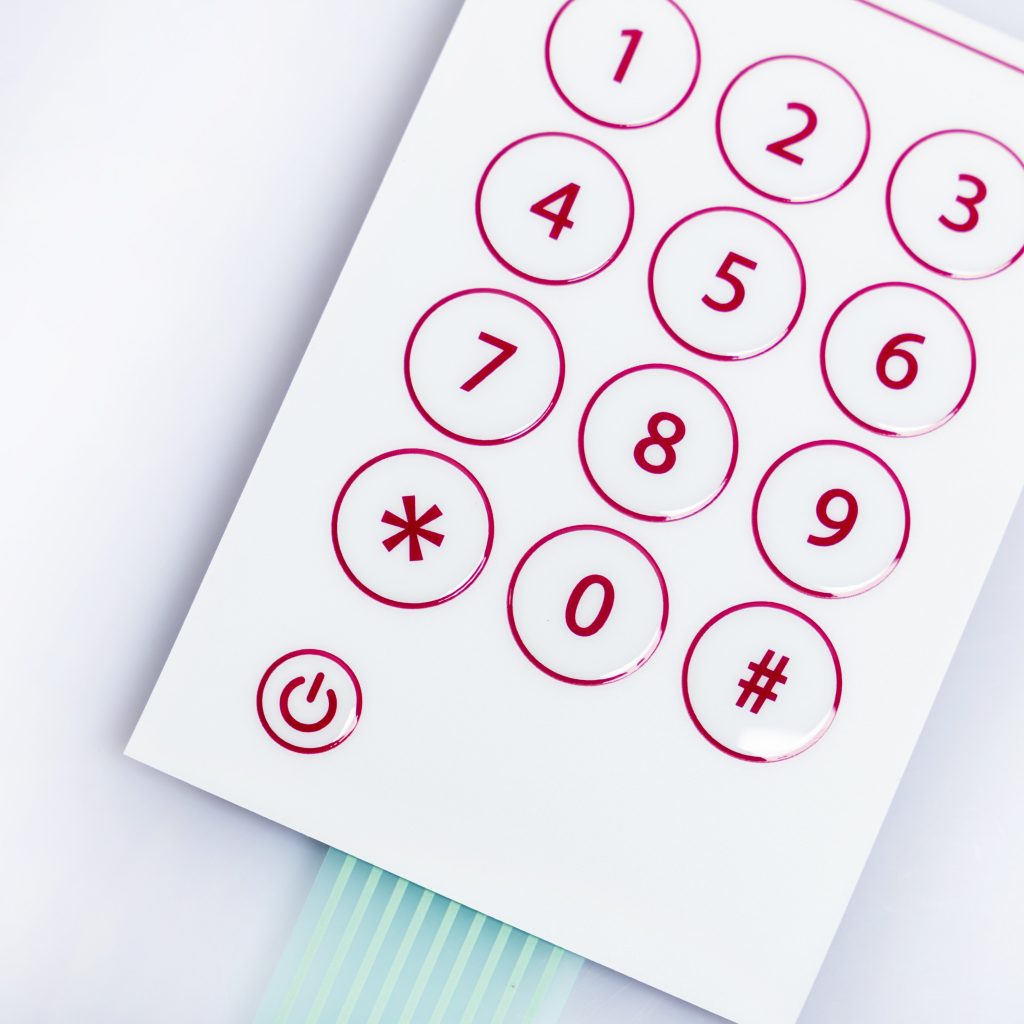

Membrane Switch: A membrane switch is a user interface that consists of multiple layers, including a graphic overlay, printed circuitry, and a backer adhesive. It serves as the interface between users and electronic devices, enabling control and interaction through the manipulation of touch-sensitive buttons or keys. Silkscreen printing is often utilized to create the graphics and text on the graphic overlay of a membrane switch.

Factors Influencing Graphic Line Thickness

Now, let’s explore the factors that contribute to the sudden thickening of graphic lines during the silkscreen printing process for membrane switches.

1. Screen Tension: One significant factor that affects the line thickness is the tension of the screen used in the printing process. When the screen tension is too high, it can cause the ink to be forced through the mesh more forcefully, resulting in thicker lines. Conversely, insufficient screen tension may lead to poor ink transfer, resulting in thinner lines or gaps in the design.

2. Ink Viscosity: The viscosity of the ink also plays a crucial role in achieving the desired line thickness. If the ink is too thick, it will struggle to pass through the screen mesh, causing clogs and resulting in thicker lines. On the other hand, if the ink is too thin, it may flow too freely and lead to thinner lines.

3. Squeegee Pressure: The pressure applied by the squeegee during the printing process is another critical factor. When excessive pressure is exerted, it can force more ink through the screen, resulting in thicker lines. Conversely, inadequate pressure may lead to incomplete ink transfer and thinner lines.

4. Mesh Count: The mesh count refers to the number of threads per inch in the screen mesh. A higher mesh count generally produces finer details and thinner lines, while a lower mesh count yields thicker lines. Using a mesh with an inappropriate count for a specific design can lead to undesired line thickness.

5. Speed of Printing: The speed at which the screen is moved across the substrate during printing can impact the line thickness. If the screen is moved too slowly, excessive ink may be deposited, resulting in thicker lines. Conversely, moving the screen too quickly may lead to insufficient ink transfer and thinner lines.

6. Environmental Conditions: Environmental factors, such as temperature and humidity, can affect the ink and its behavior during the printing process. Fluctuations in these conditions can cause variations in ink viscosity, leading to changes in line thickness.

Resolving the Issue of Thick Graphic Lines

Now that we have identified the factors contributing to thick graphic lines, let’s explore some effective solutions to address this issue and ensure high-quality silkscreen printing for membrane switches.

1. Optimize Screen Tension: Achieving the appropriate screen tension is crucial for controlling line thickness. Regularly check and adjust the tension of the screen to ensure consistent and accurate results. Consider investing in tension-measuring devices for precise adjustments.

2. Calibrate Ink Viscosity: Maintain proper ink viscosity by following the manufacturer’s guidelines. Measure the viscosity regularly using a viscometer and make adjustments as necessary. If the ink is consistently causing thick lines, consider using a thinner ink or adding an appropriate solvent to adjust the viscosity.

3. Control Squeegee Pressure: Ensure the squeegee pressure is adjusted correctly to achieve the desired ink transfer. Experiment with different pressures and observe the resulting line thickness. Regularly check and replace worn-out squeegee blades to maintain consistent printing quality.

4. Choose the Right Mesh Count: Select a screen mesh with an appropriate mesh count for the desired line thickness in the design. Consider consulting with experts or referring to industry standards to determine the optimal mesh count for your specific requirements.

5. Maintain Consistent Printing Speed: Establish a consistent and controlled speed for the printing process. Experiment with different speeds while monitoring the line thickness to determine the optimal printing speed for your setup. Use automation or printing equipment with speed control features for enhanced accuracy.

6. Control Environmental Conditions: Ensure the printing environment is well-maintained and consistent. Maintain stable temperature and humidity levels to minimize ink viscosity variations. Consider using humidity control systems or environmental enclosures for improved printing conditions.

FAQs about Graphic Line Thickness in Silkscreen Printing for Membrane Switches

1. Why do graphic lines suddenly become thick during silkscreen printing for membrane switches?

  • Graphic lines can become thick due to factors such as screen tension, ink viscosity, squeegee pressure, mesh count, printing speed, and environmental conditions. These factors affect the ink transfer process, leading to variations in line thickness.

2. How can I prevent graphic lines from becoming excessively thick during silkscreen printing?

  • Optimize screen tension, calibrate ink viscosity, control squeegee pressure, choose the right mesh count, maintain consistent printing speed, and control environmental conditions. By addressing these factors, you can ensure more precise and consistent line thickness.

3. Can an inappropriate mesh count lead to thick graphic lines?

  • Yes, using a mesh count that is too low for a specific design can result in thicker lines. It is essential to select a mesh count that suits the desired line thickness and level of detail required in the printed design.

4. How often should I check and adjust the screen tension?

  • Regularly monitor the screen tension and make adjustments as necessary. The frequency of adjustment depends on various factors, including the type of screen and printing conditions. However, it is recommended to check and adjust the tension before each printing job.

5. Should I consider automation or specialized equipment for better control over line thickness?

  • Automation and specialized equipment can offer more precise control over the printing process, including line thickness. If line thickness is a critical requirement for your membrane switch production, investing in such equipment can yield more consistent and reliable results.

6. Can environmental conditions alone cause thickening of graphic lines?

  • Environmental conditions, such as temperature and humidity, can influence ink viscosity, which in turn affects line thickness. While variations in environmental conditions can contribute to thicker lines, it is essential to address all the factors mentioned earlier for comprehensive control.


Achieving consistent and precise line thickness is crucial in silkscreen printing for membrane switches. By understanding the factors that contribute to thick graphic lines and implementing the recommended solutions, manufacturers can ensure high-quality printing results. Regular monitoring, calibration, and adjustments of screen tension, ink viscosity, squeegee pressure, mesh count, printing speed, and environmental conditions are key to achieving the desired line thickness and producing reliable membrane switches.
