Keypad Membranes: The Core of Modern User Interfaces

21 Apr, 2023

By hqt

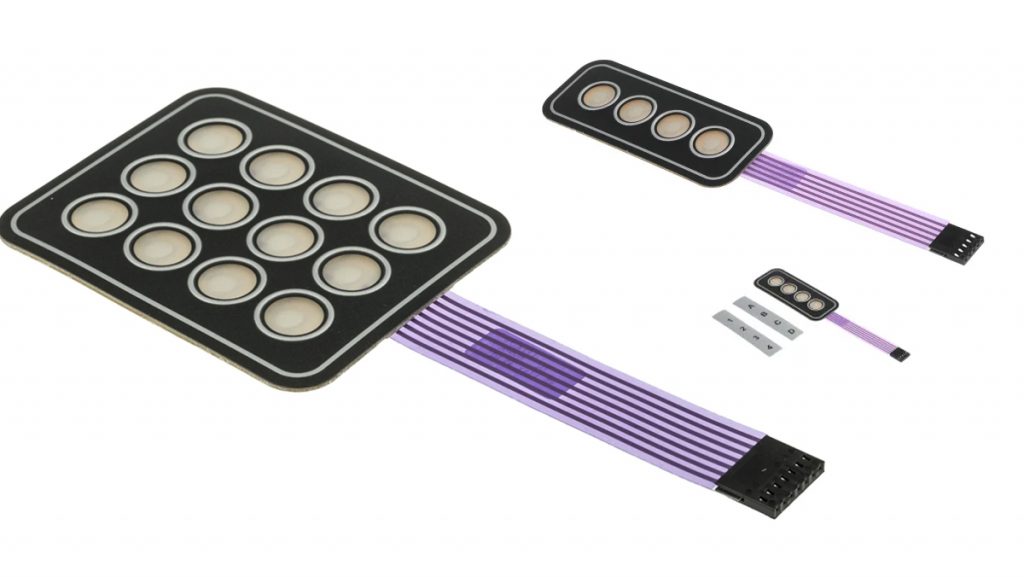

Keypad Membranes

Keypad membranes are the unsung heroes of today’s user interfaces. They play an essential role in enabling communication between humans and electronic devices. This comprehensive guide explores the basics of keypad membranes, their construction, types, applications, advantages, and maintenance practices. With 1500 words at our disposal, we will delve deep into this critical component of modern technology.

Section 1: Keypad Membranes – The Basics

A keypad membrane is a flexible, pressure-sensitive device that is commonly used as an input method for electronic devices. It consists of multiple layers of thin, flexible materials that make up the circuitry and contacts needed for key presses to register as input. The underlying technology has its roots in the 1970s when capacitive touch sensors were first introduced. Over the years, keypad membranes have evolved and adapted, finding applications in various industries and devices.

Section 2: Construction of Keypad Membranes

Keypad membranes are generally composed of three primary layers:

  1. Top Layer: This is the user-facing layer and is made of flexible materials like polyester or polycarbonate. It often features printed or embossed key designs to provide a tactile feel for users.
  2. Spacer Layer: This layer is sandwiched between the top and bottom layers, providing insulation and preventing accidental contact between the conductive layers.
  3. Bottom Layer: The bottom layer contains the conductive traces and contact points that form the electrical circuit. When pressure is applied to the top layer, it deforms and makes contact with the bottom layer, completing the circuit and registering a key press.

Section 3: Types of Keypad Membranes

There are two primary types of keypad membranes:

  1. Capacitive Membrane Keypads: These keypads function by measuring the capacitance between conductive layers. When a key is pressed, the capacitance changes and the device’s controller detects the change as a key press.
  2. Resistive Membrane Keypads: In this type of keypad, the conductive layers are separated by a spacer layer with holes that correspond to each key. When a key is pressed, the top layer deforms and makes contact with the bottom layer through the hole, creating a change in resistance that registers as a keypress.

Section 4: Applications of Keypad Membranes

Keypad membranes have found their way into numerous applications, some of which include:

  1. Consumer Electronics: Membrane keypads are commonly used in remote controls, calculators, and various other handheld devices.
  2. Industrial Controls: Membrane keypads are employed in machines, control panels, and equipment due to their durability and resistance to environmental factors.
  3. Medical Devices: The ease of cleaning and sterilizing membrane keypads make them ideal for use in medical equipment and devices.
  4. Automotive Industry: Membrane keypads are utilized in vehicles for controls like climate systems, entertainment consoles, and other in-car controls.

Section 5: Advantages of Keypad Membranes

Some key advantages of keypad membranes include:

  1. Durability: Keypad membranes are resistant to dust, moisture, and chemicals, making them suitable for harsh environments and heavy use.
  2. Customizability: Membrane keypads can be tailored to fit specific design requirements, including size, shape, and key layout.
  3. Low Profile: Membrane keypads are thin and lightweight, making them ideal for portable devices and space-constrained applications.
  4. Cost-Effective: Compared to mechanical keypads, membrane keypads are generally more affordable to produce and maintain.

Section 6: Maintenance and Care

To ensure the longevity and reliability of membrane keypads, proper maintenance, and care should be observed. The following practices can help extend the life of a membrane keypad and maintain its functionality:

  1. Cleaning: Regular cleaning is crucial in maintaining the performance of a membrane keypad. Use a soft, lint-free cloth or sponge dampened with a mild cleaning solution to gently wipe the surface. Avoid using harsh chemicals or abrasive materials that may damage the keypad’s surface or printed graphics.
  2. Moisture Control: While membrane keypads are designed to be resistant to moisture, prolonged exposure to excessive humidity or liquids may cause damage. Avoid submerging the keypad in water or exposing it to high-humidity environments for extended periods.
  3. Proper Use: Apply even pressure to the keys when using the keypad to prevent damage to the underlying layers. Excessive force or improper keypresses can cause premature wear and tear, reducing the keypad’s lifespan.
  4. Storage: When not in use, store the device with the membrane keypad in a cool, dry, and dust-free environment. Extreme temperatures and humidity can cause the layers to separate or degrade, impacting the keypad’s performance.
  5. Inspection: Regularly inspect the membrane keypad for signs of wear, damage, or contamination. Address any issues promptly to prevent further degradation or failure.
  6. Repair and Replacement: In case of damage or malfunction, consult the manufacturer’s guidelines or seek professional assistance for repair or replacement. Attempting to fix a membrane keypad without proper knowledge or tools may result in further damage.

keypad membrane FQA

Q: What is a keypad membrane?
A: A keypad membrane is a type of switch that is commonly used in electronic devices to provide user input functionality. It is a thin, flexible membrane that contains a circuit printed on it, which includes the contacts for each key on the keypad. When a key is pressed, the membrane deforms, allowing the contact on the membrane to make contact with a corresponding contact on the circuit board.

Q: What are the advantages of using a keypad membrane?
A: Some advantages of using a keypad membrane include their low cost, low profile, and durability. They are also easy to clean and maintain, and they can be designed to be waterproof and resistant to environmental factors such as dust, humidity, and temperature.

Q: What are the common applications of keypad membranes?
A: Keypad membranes are commonly used in various electronic devices such as remote controls, calculators, and medical devices. They are also used in industrial settings for machine control and automation and in consumer products such as appliances, gaming devices, and security systems.

Q: How do I clean a keypad membrane?
A: To clean a keypad membrane, use a soft, lint-free cloth or a cotton swab and a mild cleaning solution such as water or isopropyl alcohol. Avoid using abrasive cleaners or solvents, as they can damage the membrane or the circuit board. Gently wipe the surface of the membrane and allow it to dry completely before using the keypad.

Q: What are some common issues with keypad membranes?
A: Common issues with keypad membranes include worn-out or damaged contacts, misaligned or stuck keys, and electrical or mechanical failures. These issues can be caused by physical damage, exposure to moisture or heat, or normal wear and tear over time.
