Understanding Membrane Keypads: Components, Applications, and Advantages

21 Apr, 2023

By hqt

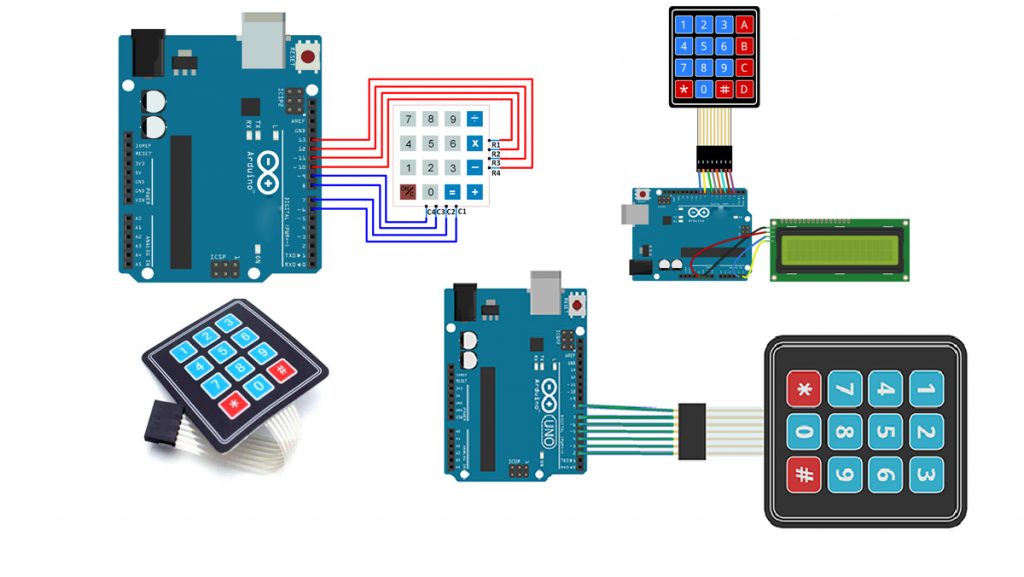

Membrane Keypads

Membrane keypads are versatile, customizable, and cost-effective user interfaces that have become increasingly popular in various industries. From consumer electronics to industrial machinery, membrane keypads offer a wide range of benefits that make them an attractive choice for designers and manufacturers. In this article, we will explore the components of membrane keypads, their applications, and the advantages that make them stand out from other types of keypads.

Components of Membrane Keypads

  1. Graphic Overlay The graphic overlay is the outermost layer of a membrane keypad. It is made from a flexible, durable material such as polyester or polycarbonate and serves as the interface between the user and the keypad. The overlay is printed with graphics, symbols, and text to indicate the functions of each button, providing users with a visually appealing and functional surface to interact with the device.
  2. Spacer Layers Spacer layers are thin, adhesive sheets that separate the upper and lower circuit layers in a membrane keypad. They play a crucial role in preventing accidental activation of the switches and maintaining the structure of the keypad. The spacer layers are typically made from polyester or adhesive materials and are die-cut to create precise openings for each button.
  3. Circuit Layers The circuit layers contain the conductive elements that enable the functionality of the membrane keypad. These layers are made from polyester films with printed conductive inks, such as silver or carbon, that form the electrical pathways for the switches. When a button is pressed, the conductive traces on the upper and lower circuit layers make contact, completing the circuit and sending a signal to the device’s control system.
  4. Rear Adhesive Layer The rear adhesive layer is used to attach the membrane keypad to the device or housing. It is usually made from a pressure-sensitive adhesive that ensures a secure bond between the keypad and the device, providing a seamless integration of the interface.

Applications of Membrane Keypads

  1. Consumer Electronics Membrane keypads are commonly found in a variety of consumer electronics, including remote controls, calculators, and home appliances. Their low cost, durability, and customizability make them an attractive choice for manufacturers looking to create user-friendly interfaces for their products.
  2. Industrial Machinery In industrial settings, membrane keypads are used in control panels, machinery, and equipment, providing operators with a reliable and responsive interface for controlling processes. The durability and resistance to harsh environments make membrane keypads ideal for these applications.
  3. Medical Devices Membrane keypads are widely used in medical devices such as patient monitors, infusion pumps, and diagnostic equipment. Their ease of cleaning, resistance to contaminants, and ability to be sealed against liquids and gases make them a suitable choice for the demanding requirements of the medical industry.
  4. Automotive Industry In the automotive industry, membrane keypads can be found in control panels, dashboard interfaces, and keyless entry systems. The lightweight and compact design, combined with the ability to withstand harsh environmental conditions, make them well-suited for automotive applications.

Advantages of Membrane Keypads

  1. Durability: Membrane keypads are resistant to moisture, dust, and other contaminants, making them well-suited for harsh environments. Their sealed construction also reduces the chances of internal components becoming damaged.
  2. Low cost: Membrane keypads are generally less expensive to manufacture than their mechanical or capacitive counterparts, making them an attractive option for budget-conscious applications.
  3. Thin and lightweight: The flexible construction of membrane keypads allows them to be very thin and lightweight, which can be beneficial in applications with limited space or weight constraints.
  4. Customizability: Membrane keypads can be easily customized to fit specific applications, with options for different key shapes, sizes, and colors, as well as incorporating graphic overlays and logos.
  5. Tactile feedback: Membrane keypads can be designed with tactile feedback, such as a snap dome, providing a positive click feel when a key is pressed.
  6. Low-profile design: Membrane keypads have a sleek, low-profile appearance, which can be aesthetically pleasing and provide a modern look.
  7. Ease of cleaning: The flat, sealed surface of membrane keypads makes them easy to clean, as dirt and debris cannot get trapped between keys.
  8. Low force requirement: Membrane keypads typically require less force to activate a keypress, reducing user fatigue and increasing typing speed.
  9. Water and chemical resistance: The sealed nature of membrane keypads provides resistance to water and certain chemicals, making them suitable for use in environments where exposure to these elements is a concern.
  10. Long operational life: Although not as long-lasting as mechanical keypads, membrane keypads still offer a relatively long operational life, with millions of keypresses before failure.

Membrane Keypads FQA

  1. What is a membrane keypad?

A membrane keypad is a type of input device consisting of a thin, flexible layer of material with printed or embossed keys. The keys are pressure-sensitive and make an electrical connection when pressed, allowing for data input.

  1. How do membrane keypads work?

Membrane keypads work by using a sandwich-like structure with multiple layers, typically consisting of a graphic overlay, spacer, top circuit, another spacer, and a bottom circuit. When a key is pressed, the top and bottom circuits make contact, completing an electrical circuit and registering the keypress.

  1. What are the common applications of membrane keypads?

Membrane keypads are commonly used in various industries and applications, such as industrial controls, medical devices, consumer electronics, appliances, and access control systems.

  1. How do I clean a membrane keypad?

To clean a membrane keypad, use a soft, lint-free cloth dampened with a mild cleaning solution. Gently wipe the surface, avoiding excessive pressure or scrubbing, which could damage the keypad.

  1. Can I add custom graphics or logos to my membrane keypad?

Yes, membrane keypads can be easily customized with custom graphics, logos, and colors to fit your specific branding or design requirements.

  1. What is the expected lifespan of a membrane keypad?

The expected lifespan of a membrane keypad can vary depending on the application and usage conditions. However, they typically last for millions of keypresses before experiencing failures or degradation.

  1. Can membrane keypads be used in outdoor environments?

Membrane keypads can be designed for outdoor use by incorporating UV-resistant materials, sealing against moisture and dust ingress, and using ruggedized construction. However, the suitability of a specific keypad for outdoor use will depend on the specific design and materials used.

  1. How does the tactile feedback of membrane keypads compare to mechanical keypads?

Mechanical keypads typically offer better tactile feedback due to their individual switch mechanisms. However, membrane keypads can still provide tactile feedback through the use of snap domes or embossed keys, although it may not be as distinct as with mechanical keypads.

  1. Can membrane keypads be backlit?

Yes, membrane keypads can be backlit using various methods, such as light guides, LEDs, or electroluminescent panels, to improve visibility in low-light conditions.

  1. What factors should I consider when choosing a membrane keypad?

When selecting a membrane keypad, consider factors such as durability, environmental resistance, customizability, tactile feedback, cost, and the specific application requirements.
